Outdoor Marguee Gazebo Canopy Wedding Garden Tent with Removable Wall Curtain Party Tent
1)Application:
30m x 45m Outdoor Function Catering Tent Wedding Marquee Tent (LS series, A frame) can be widely used as the wedding tent, party tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports tent, & temporary, semi-permanent or permanent building purpose etc.
2)Materials:
Fabric: Double PVC coated polyester fabric, 650-900g/sq. m, water proof, UV resistance, anti-mildew, self-cleaning, fire retardant according to standard NFPA701 & DIN4102 B1/M2
3)Frame:
Hard pressed extruded aluminum 6061/T6, anodized surface finishing.
Main frame profile size: 256*120*5mm ;
4)Connections:
Hot-dip galvanized steel;
5)Life span:
Life span of fabric(cover & sidewalls): 8-10years;
Life span of aluminum frame: 20-30years
6)Structure safety parameters:
Wind load: 100km/h (0.5kn/M2)
Snow load: 25kg/sq.m
7)Color available:
White, red, yellow, blue, green, black, grey, transparent etc
8)Optional Accessories:
Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, Sandwich walls, auto-rolling door, decoration lining, flooring system, clear PVC windows sidewalls, transport rack for the glass door & walls, ramp etc; chairs , tables, & other furniture for the parties are also provided for your option.
Our Series:
| Type | Span (m) | Side height (m) | Ridge height (m) | Bay Distance (m) | Roof Pitch | Longest Component (m) | Wind Load (km/h) |
|
LS20/4.0-5
|
20 | 4.0 | 7.2 | 5 | 18° | 10.7 | 100 |
| LS25/4.0-5 | 25 | 4.0 | 8 | 5 | 18° | 10.7 | 100 |
| LS30/4.0-5 | 30 | 4.0 | 8.9 | 5 |
18°
|
10.7 | 100 |
| Main frame Profile | 256*120*5mm(4-channel) | ||||||
| Eave Connection | Hot-dip Galvanized Twin Steel Plate | ||||||
| Roof Fixing | Bar Tension | ||||||
| Frame Material | Hard Pressed Extruded Aluminum 6061/T6 | ||||||
| Cover Material | Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,650-900g/sq.m | ||||||

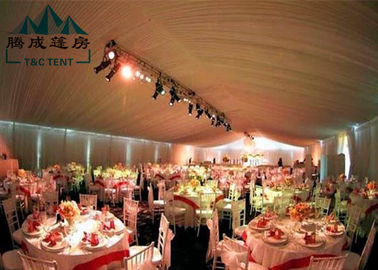

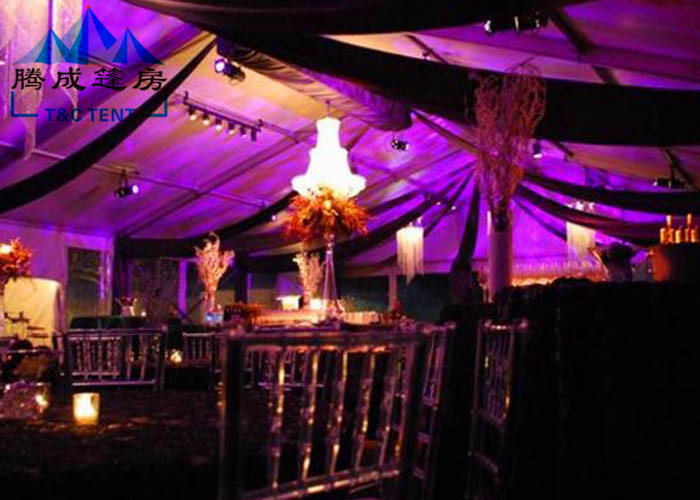

Produce Show:
Our service:
1. We offer a one-year warranty for all our sold products. Within the warranty period, we shall offer free on-site repair. At the same time, we shall offer paid service in case of the following circumstances.
A. Damage born of artificial behavior or irresistible natural phenomenon;
B. Breakdown or damage due to improper operation;
C. Breakdown or damage due to transformation, decomposition and assembly of products.
2. Upon receipt of repair notice, we shall arrive at the site within seven working days and settle the problem.
3. A user may consult related technical questions via after-sales telephone and receive a definite solution. Business service tel.: +8618027240112/ 020-39048997
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
A: Generally it is 15-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: How long is the warranty period?
