Outdoor Clear Span Roder Style Marquee Storage Tent with Sandwich Wall for Sale
Specification:
| Structure of marquee: | |||||||
| Aluminum profile | high pressed extrued aluminum alloy 6061-T6,122X68X3mm for 10m,11m,12mwidth | ||||||
| 166x88x3mm for 13m, 14m. 15m, 17m, 18m width. All are anodized | |||||||
| Steel parts | hot-dipped galvanized , Passed 144 hour of salt spraying test | ||||||
| Raw material of marquee | |||||||
| Top roof fabric | 850g/sqm(24 Ounce) laminate Vinyl, waterproof , fire retardant M2 | ||||||
| UV protection, and Rotproof. Blackout | |||||||
| Side panels | (1) 650g/sqm(19 Ounce) laminate Vinyl, waterproof , fire retardant M2 | ||||||
| UV protection, and Rotproof. Translucence. | |||||||
| (2) 5cm thickness of sandwitch solid wall, ABS Solidwall,Glass wall | |||||||
| flame retardant,Heat resistant and Rotproof. | |||||||
Our Series:
| Item | Size | Side high | ridge high | Bay distance |
| PT10 | 10m width,the length is unlimited | 3m | 5.0 | 5m |
| PT11 | 11m width,the length is unlimited | 3m | 5.2 | 5m |
| PT12 | 12m width,the length is unlimited | 3m | 5.3 | 5m |
| PT13 | 13m width,the length is unlimited | 3m | 5.4 | 5m |
| PT14 | 14m width,the length is unlimited | 3m | 5.5 | 5m |
| PT15 | 15m width,the length is unlimited | 3m | 5.5 | 5m |
| PT16 | 16m width,the length is unlimited | 3m | 5.6 | 5m |
| PT18 | 18m width,the length is unlimited | 3m | 5.7 | 5m |

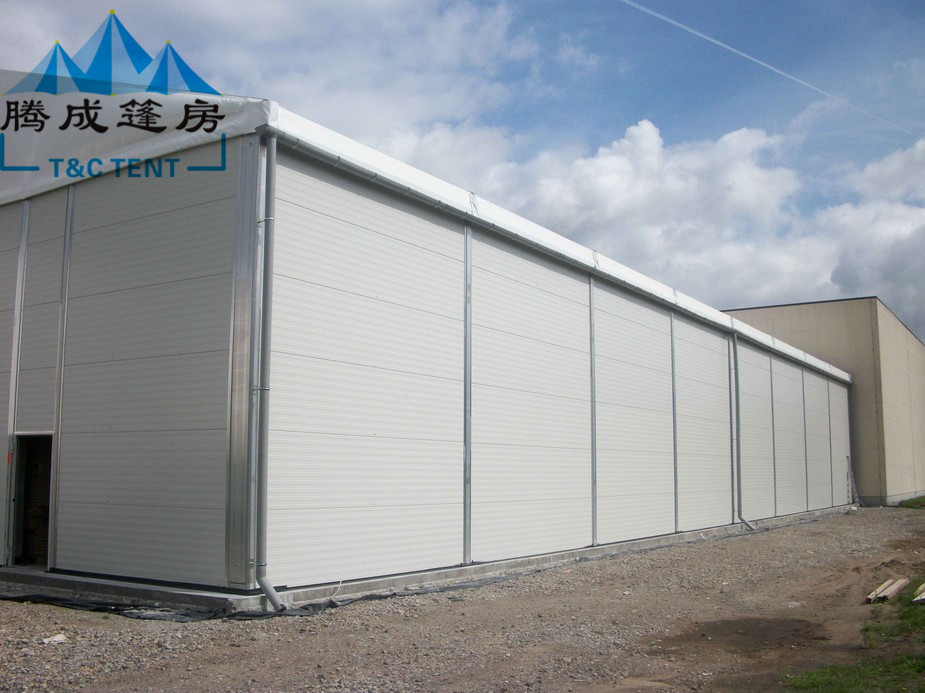

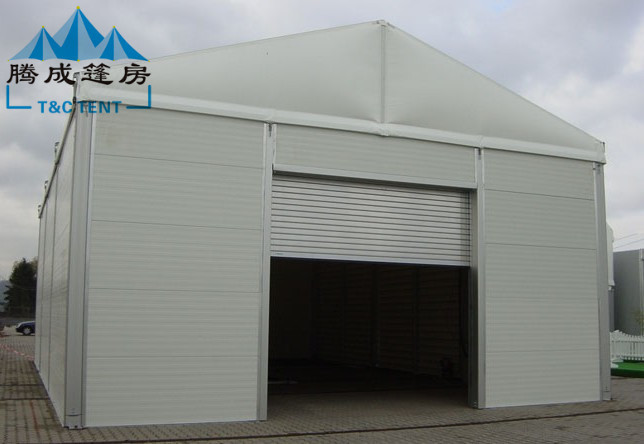

Produce Show:
Our service:
1. We offer a one-year warranty for all our sold products. Within the warranty period, we shall offer free on-site repair. At the same time, we shall offer paid service in case of the following circumstances.
A. Damage born of artificial behavior or irresistible natural phenomenon;
B. Breakdown or damage due to improper operation;
C. Breakdown or damage due to transformation, decomposition and assembly of products.
2. Upon receipt of repair notice, we shall arrive at the site within seven working days and settle the problem.
3. A user may consult related technical questions via after-sales telephone and receive a definite solution. Business service tel.: +8618027240112/ 020-39048997
What advantage:
| Item | Our manufactory | Some manufactories |
| Side height | 3m | lower 2.7m or 2.5m |
| Aluminum profile | Bigger 166x88x3mm | Smaller 122x68x2.5mm profile |
| Fabric | 850g/sqm, special treated | 750g/sqm or 650g/sqm, no special treated |
| Steel joints | Good welding, Spray salt resistant 144hour | Bad welding, Spray salt resistant about 80 hour |
| Assembly accuracy | Bolt and holes can fit exactly and fixed | Bolt is difficult to get through hole and fixed. |
| TransparencyPVC | UV Aging test, -20º C resistant | No UV Aging test, can' t be 20º Cresistant, breaken |
| Sidewallaccessories | Nylon rope+Nickel Eyelet | Zippper, easy breaken. or cotton rope, easy rot |
| Rachet | Bigger rachet+nylon 50mm ribbon | Small rachet+polyester ribbon, easy breaken |
| Cover lappetstructure | Aluminum rails+screw bolt | Elastic rope, easy breaken and water can' t flow. |
| Roof wire | 201# steel wire, stainlesss | Generally steel wire, easy stain |
| Support beam | " X" brace beam, galvanized steel | port beam, thin aluminum |
| Gable triangle wall | The middle is aluminum slots | The middle is velcro or rope. |
| Wind loading | Wind loading 80km/h test report | No Wind loading test report |
